PLATFORM ALUMINIUM LADDER
Features

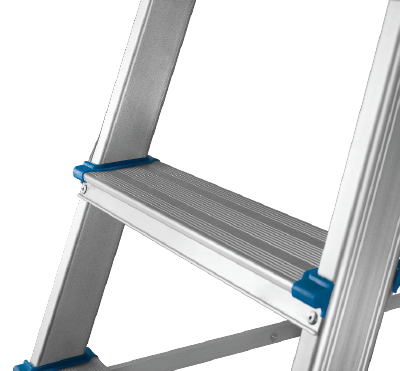

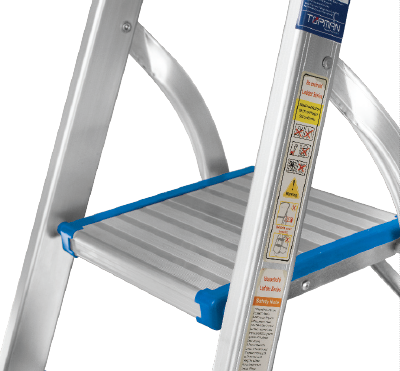

- Platform provides secure and comfortable work area
- Easy to handle and fold
- Safety guardrail
- Single person use , access from front side

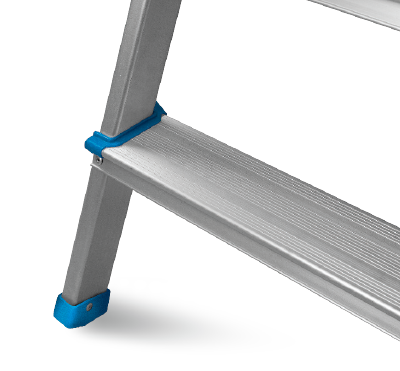

- Slip resistant foot and platform
Item Code : PFAL

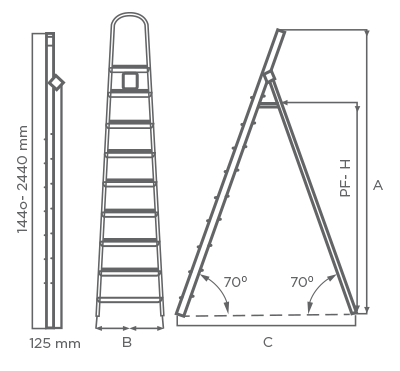

TECHNICAL DATA (DIMENSIONS IN MM)
SAFE WORKING LOAD 100 KGS
| CODE | NO OF STEPS | LENGTH | A | B | C | PF H | Weight Kg |
|---|---|---|---|---|---|---|---|
| PFAL4 | 3+1 | 1440 | 1300 | 430 | 730 | 785 | 3.40 | PFAL5 | 4+1 | 1640 | 1495 | 455 | 850 | 980 | 3.90 | PFAL6 | 5+1 | 1840 | 1690 | 480 | 970 | 1175 | 4.45 | PFAL7 | 6+1 | 2040 | 1885 | 505 | 1090 | 1370 | 5.05 | PFAL8 | 7+1 | 2240 | 2080 | 530 | 1220 | 1565 | 5.70 | PFAL9 | 8+1 | 2440 | 2275 | 555 | 1310 | 1760 | 6.40 |
