FIBER GLASS PLATFORM LADDER
Features

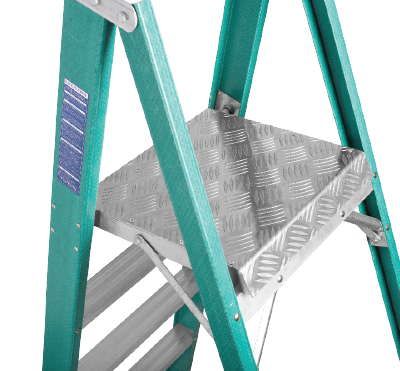

- Pro top with multiple tool tray

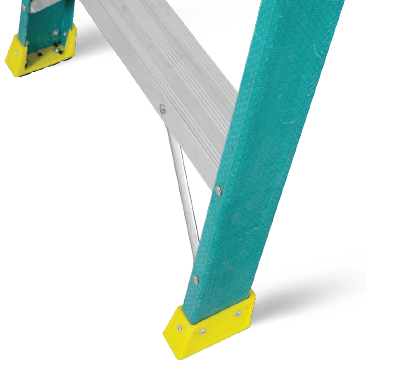

- Rigid slip resistant boot
- Heavy duty-rivet step construction
- Single person use access from front side
- Foldable type
- Cross support bracing gives more strength to the steps
- Anti static and fire retardant profile
Item Code : FRPPFL
TECHNICAL DATA (DIMENSIONS IN MM)
SAFE WORKING LOAD 130 KGS
| CODE | NO OF STEPS | LENGTH | A | B | C | PFH |
|---|---|---|---|---|---|---|
| FRPPFL4 | 3+1 | 2000 | 1015 | 595 | 1880 | 1140 | FRPPFL5 | 4+1 | 2300 | 1185 | 625 | 2165 | 1425 | FRPPFL6 | 5+1 | 2600 | 1355 | 655 | 2450 | 1710 | FRPPFL7 | 6+1 | 2900 | 1525 | 685 | 2735 | 2010 | FRPPFL8 | 7+1 | 3200 | 1695 | 715 | 3020 | 2290 | FRPPFL10 | 1+9 | 3800 | 2035 | 775 | 3590 | 2900 |
