DOUBLE SECTION STRAIGHT ALUMINIUM LADDER
Features
- Large and comfortable square shaped rungs
- Extendable type ladder
- Non-slip feet and rungs

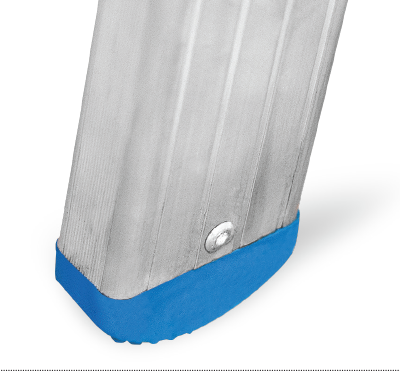

- Antislip foot

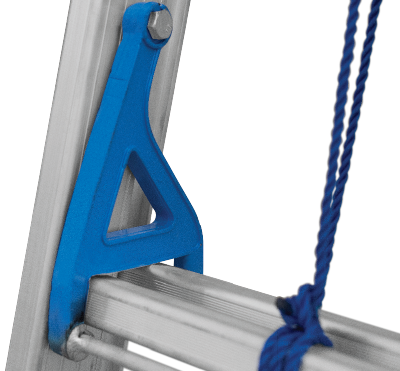

- Rigid aluminium locking hook moves comfortably in rope and pulley
Item Code : DSSTAL

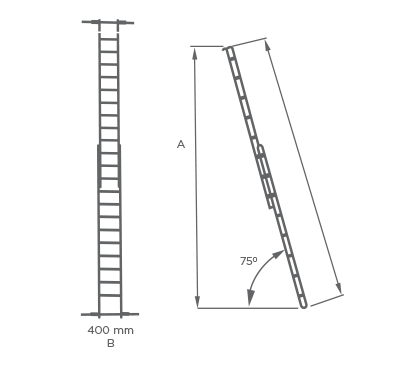

TECHNICAL DATA (DIMENSIONS IN MM)
SAFE WORKING LOAD 150 KGS
| CODE | NO OF STEPS | LENGTH | A | B | Weight Kg |
|---|---|---|---|---|---|
| DSSTAL5 | 5 + 5 | 3000 | 2900 | 400 | 8.00 | DSSTAL6 | 6 + 6 | 3600 | 3480 | 400 | 9.10 | DSSTAL7 | 7 + 7 | 4200 | 4060 | 400 | 10.30 | DSSTAL8 | 8 + 8 | 4800 | 4640 | 400 | 11.45 | DSSTAL9 | 9 + 9 | 5400 | 5220 | 400 | 12.60 | DSSTAL10 | 10 + 10 | 6000 | 5800 | 400 | 13.75 | DSSTAL11 | 11 + 11 | 6600 | 6380 | 400 | 14.90 | DSSTAL12 | 12 + 12 | 7200 | 6960 | 400 | 16.00 | DSSTAL13 | 13 + 13 | 7800 | 7540 | 400 | 17.10 | DSSTAL14 | 14 + 14 | 8400 | 8120 | 400 | 18.25 | DSSTAL15 | 15 + 15 | 9000 | 8700 | 400 | 19.35 | DSSTAL16 | 16 + 16 | 9600 | 9280 | 400 | 20.50 | DSSTAL17 | 17 + 17 | 10200 | 9860 | 400 | 21.65 | DSSTAL18 | 18 + 18 | 10800 | 10440 | 400 | 22.80 | DSSTAL19 | 19 + 19 | 11400 | 11020 | 400 | 23.85 |
